Pooling Systems (풀링 시스템)
Relevant source files (관련 소스 파일)
•
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs
•
Scripts/Editor/Inspector/ReferencePoolComponentInspector.cs
•
Scripts/Editor/Inspector/ReferencePoolComponentInspector.cs.meta
•
Scripts/Runtime/Debugger/DebuggerActiveWindowType.cs
•
Scripts/Runtime/Debugger/DebuggerComponent.ObjectPoolInformationWindow.cs
•
Scripts/Runtime/Debugger/DebuggerComponent.ReferencePoolInformationWindow.cs
•
Scripts/Runtime/Debugger/DebuggerComponent.ReferencePoolInformationWindow.cs.meta
•
Scripts/Runtime/Debugger/DebuggerComponent.RuntimeMemoryInformationWindow.cs
•
Scripts/Runtime/Debugger/DebuggerComponent.RuntimeMemorySummaryWindow.cs
•
Scripts/Runtime/Debugger/DebuggerComponent.cs
•
Scripts/Runtime/ReferencePool.meta
•
Scripts/Runtime/ReferencePool/ReferencePoolComponent.cs
•
Scripts/Runtime/ReferencePool/ReferencePoolComponent.cs.meta
•
Scripts/Runtime/ReferencePool/ReferenceStrictCheckType.cs
•
Scripts/Runtime/ReferencePool/ReferenceStrictCheckType.cs.meta
Overview (개요)
Unity Game Framework는 게임 내 메모리 사용 최적화 및 GC(Garbage Collection) 부하 감소를 위해 두 가지 풀링 시스템을 제공합니다.
•
Object Pool System (오브젝트 풀 시스템): Unity GameObject 전용 풀링
•
Reference Pool System (레퍼런스 풀 시스템): C# 객체 전용 풀링
이 두 시스템은 객체를 재사용함으로써 성능을 개선하며, 반복적인 생성/파괴로 인한 오버헤드를 줄입니다.
일반적인 리소스 관리에 대해서는 Resource Management System 참고
Sources:
Scripts/Runtime/ReferencePool/ReferencePoolComponent.cs
Scripts/Runtime/ObjectPool/ObjectPoolComponent.cs (파일 목록에는 없지만 추론됨)
Scripts/Runtime/Debugger/DebuggerComponent.ObjectPoolInformationWindow.cs
Scripts/Runtime/Debugger/DebuggerComponent.ReferencePoolInformationWindow.cs
Object Pool System (오브젝트 풀 시스템)
오브젝트 풀 시스템은 Unity GameObject를 관리합니다.
객체를 매번 Instantiate/Destroy 하지 않고 재사용할 수 있도록 하여, 특히 투사체, 이펙트, UI 요소 등 자주 생성/파괴되는 오브젝트에 유리합니다.

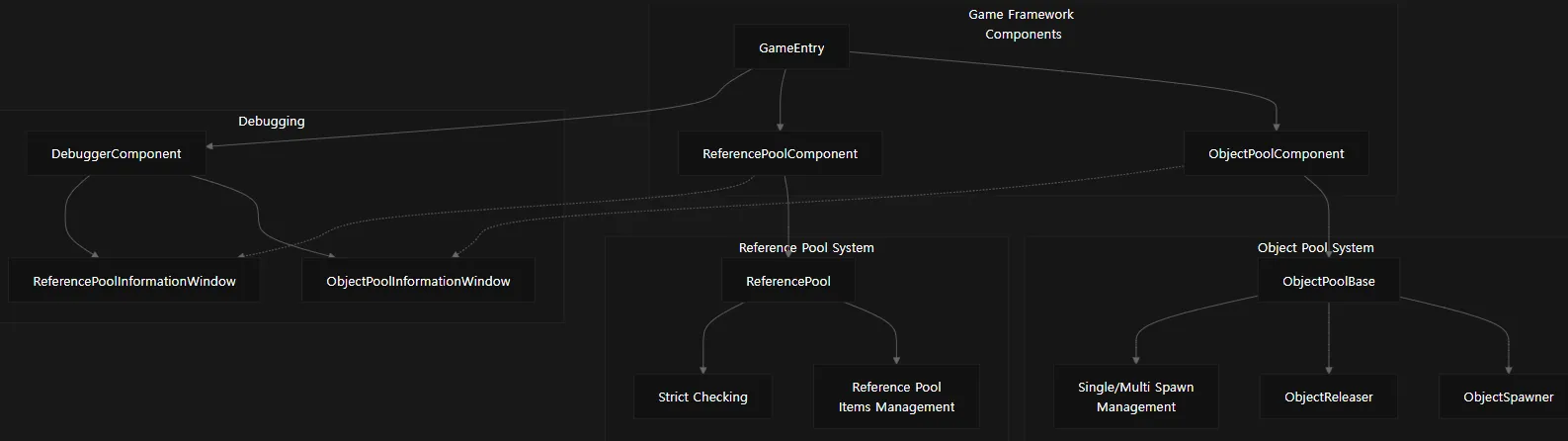

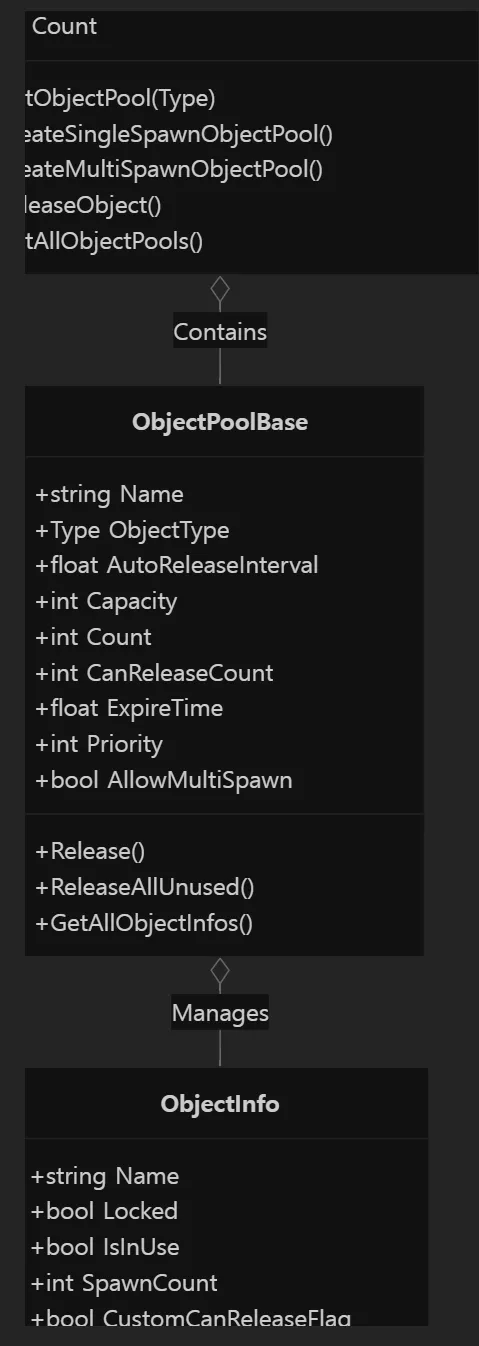

Architecture and Components (아키텍처 및 컴포넌트)
Sources:
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs 41-45
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs 75-82
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs 83-90
Scripts/Runtime/Debugger/DebuggerComponent.ObjectPoolInformationWindow.cs 46-58
Key Features (핵심 기능)
•
Single/Multi-Spawn 지원:
하나의 인스턴스만 동시에 활성화되는 단일 스폰 모드와 여러 개를 동시에 활성화할 수 있는 멀티 스폰 모드 지원
•
자동 반환(Auto-Release):
지정한 시간 후 객체를 풀로 자동 반환
•
우선순위(Prioritization):
풀 공간이 부족할 때 우선순위가 높은 객체는 더 오래 유지됨
•
객체 추적(Object Tracking):
각 객체의 상태와 마지막 사용 시점 등 상세 정보 추적
Using the Object Pool (사용 방법)
•
주로 Prefab 인스턴스, 자주 생성/삭제되는 Unity 오브젝트 관리에 사용
•
반환된 오브젝트는 비활성화 상태로 유지되며, 필요할 때 즉시 재활성화 가능
Reference Pool System (레퍼런스 풀 시스템)
레퍼런스 풀 시스템은 C# 객체를 관리하여 GC 부하를 줄이는 것에 초점이 맞춰져 있습니다.
특히 이벤트 파라미터, 커맨드 인자, 임시 데이터 구조체 등 짧은 생명주기 객체에 유용합니다.

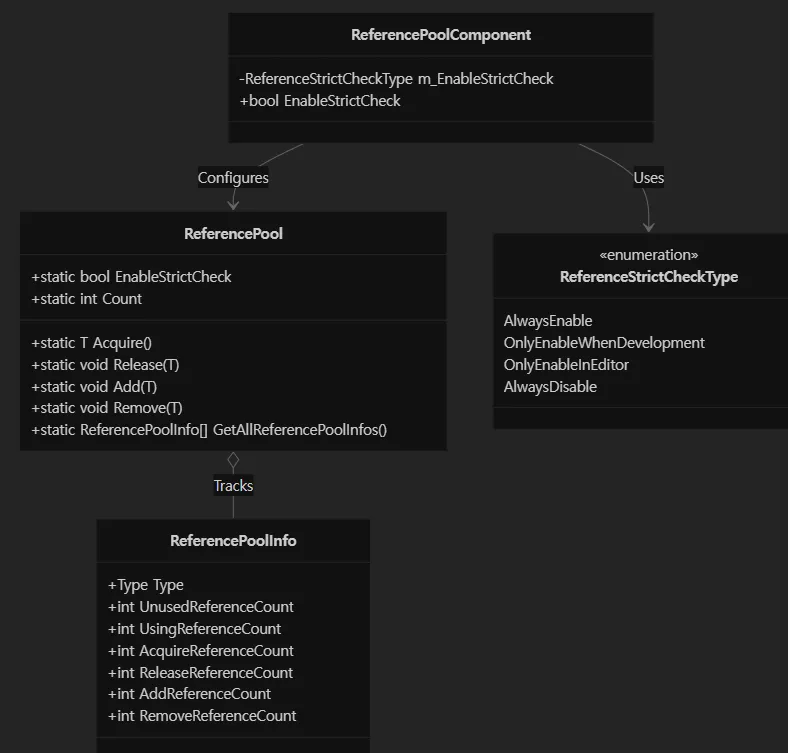

Architecture and Components (아키텍처 및 컴포넌트)
Sources:
Scripts/Runtime/ReferencePool/ReferencePoolComponent.cs 16-72
Scripts/Runtime/ReferencePool/ReferenceStrictCheckType.cs 13-34
Scripts/Editor/Inspector/ReferencePoolComponentInspector.cs 48-58
Scripts/Runtime/Debugger/DebuggerComponent.ReferencePoolInformationWindow.cs 33-41
Strict Checking (엄격 검사)
레퍼런스 풀은 객체가 올바르게 획득/반환되는지 검사할 수 있는 기능을 제공합니다.
•
활성화 시, 객체의 올바른 획득/반환 여부를 검증
•
메모리 누수나 잘못된 사용 패턴을 탐지 가능
•
개발 시점(에디터/디버그 빌드 등)에서만 활성화 가능
ReferenceStrictCheckType 옵션:
•
AlwaysEnable: 항상 활성화
•
OnlyEnableWhenDevelopment: 개발 빌드에서만 활성화
•
OnlyEnableInEditor: 에디터에서만 활성화
•
AlwaysDisable: 비활성화
Sources:
Scripts/Runtime/ReferencePool/ReferencePoolComponent.cs 51-69
Scripts/Runtime/ReferencePool/ReferenceStrictCheckType.cs 13-34
Using the Reference Pool (사용 방법)
•
풀링 대상 클래스는 특정 인터페이스 구현 또는 베이스 클래스 상속 필요
•
객체 획득: ReferencePool.Acquire<T>()
•
객체 반환: ReferencePool.Release<T>(object)
•
엄격 검사는 성능에 영향을 줄 수 있으므로 보통 개발/테스트 시에만 사용
Debugging and Monitoring (디버깅 및 모니터링)
두 풀링 시스템 모두 디버거 컴포넌트를 통해 모니터링이 가능합니다.
Object Pool Information Window (오브젝트 풀 정보 창)
표시 내용:
•
전체 오브젝트 풀 개수
•
각 풀의 상세 정보: 이름, 타입, 용량
•
현재 사용량
•
자동 반환 간격
•
우선순위 설정
•
객체 상태 정보
Sources:
Scripts/Runtime/Debugger/DebuggerComponent.ObjectPoolInformationWindow.cs 30-92
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs 25-136
Reference Pool Information Window (레퍼런스 풀 정보 창)
표시 내용:
•
엄격 검사 활성 여부
•
전체 레퍼런스 풀 개수
•
각 타입별 통계:
◦
사용 중/미사용 객체 수
◦
획득/반환 횟수
◦
추가/제거 횟수
•
클래스 이름 표기를 전체 이름 / 단순 이름으로 전환 가능
Sources:
Scripts/Runtime/Debugger/DebuggerComponent.ReferencePoolInformationWindow.cs 30-86
Scripts/Editor/Inspector/ReferencePoolComponentInspector.cs 29-128
Editor Integration (에디터 통합)
프레임워크는 에디터에서 다음 기능을 제공합니다:
•
풀 통계 모니터링 (Play Mode 중 확인 가능)
•
CSV로 데이터 내보내기
•
인스펙터에서 직접 미사용 객체 해제
Sources:
Scripts/Editor/Inspector/ObjectPoolComponentInspector.cs 20-138
Scripts/Editor/Inspector/ReferencePoolComponentInspector.cs 19-152
Best Practices (모범 사례)
•
Object Pool:
투사체, 이펙트, UI 등 자주 생성/삭제되는 Unity GameObject 관리에 사용
•
Reference Pool:
이벤트 파라미터, 명령 인자, 임시 데이터 등 짧은 수명의 C# 객체 관리에 사용
•
자동 반환 설정:
메모리 사용과 성능 균형을 맞출 수 있도록 적절히 지정
•
적절한 용량 설정:
동시에 필요할 것으로 예상되는 최대 수량보다 약간 큰 값으로 풀 크기 설정
•
개발 중 엄격 검사 활성화:
개발 단계에서는 Reference Pool의 Strict Checking을 켜서 문제를 조기에 발견,
릴리즈 빌드에서는 성능을 위해 비활성화
